Master Woodworking: Perfect Dadoes & Rabbets Made Easy

Dadoes and Rabbets

Woodworking often involves creating strong joints between pieces of wood. Dadoes and rabbets are two essential joints in this craft. Understanding their functionality, usage, and how to create them can elevate your woodworking skills significantly.

Understanding Dadoes

A dado is a slot or trench cut into the surface of a piece of wood. It is typically cut across the grain. The dado provides a housing for another piece of wood. Its primary function is to create a solid joint that can support shelves or partitions. Dadoes can be found in cabinetry, bookshelves, and frames.

There are variations of dadoes. A through dado goes all the way across the board, while a stopped dado does not extend to the edges. The width of the dado should match the thickness of the mating piece of wood, ensuring a snug fit.

Types of Dadoes

  • Through Dado
  • Stopped Dado
  • Rabbeted Dado

A rabbeted dado includes an additional rabbet cut on one or both sides of the groove to increase surface area for gluing. This type of dado is suitable for applications requiring added durability.

Tools for Cutting Dadoes

Common tools for cutting dadoes include:

  • Table saw
  • Router
  • Dado sets

A table saw with a dado blade set can adjust for the width of the groove. Using a router with a straight bit can also cut precise dadoes. Both methods have their advantages. A table saw is fast and efficient, while a router offers more control and cleaner cuts.

Steps to Cut a Dado

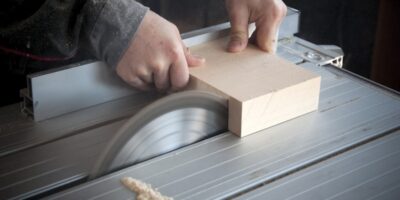

Using a Table Saw:

  1. Set the dado blade to the desired width.
  2. Adjust the blade height to match the depth of the desired cut.
  3. Position the wood against the fence.
  4. Run the wood through the blade, ensuring steady pressure.
  5. Check the fit and clean up the groove if necessary.

Using a Router:

  1. Choose a straight bit matching the width of the dado.
  2. Set the desired depth on the router.
  3. Secure the wood and set up guide rails.
  4. Run the router along the guide to cut the dado.
  5. Test fit the mating piece and make adjustments if needed.

Understanding Rabbets

A rabbet is a notch cut along the edge or end of a board. It creates a step which can fit another piece of wood. Rabbets are fundamental in constructing boxes, cabinets, and frames. They offer structural support and alignment.

Rabbets can be single or double. A single rabbet is cut on one edge, suitable for simple joints. Double rabbets are cut on opposing edges of the meeting boards, providing a more secure fit.

Tools for Cutting Rabbets

Tools used for cutting rabbets include:

  • Table saw
  • Router
  • Rabbet planes

A rabbet plane is a traditional tool, offering precision and control. A table saw or router can produce quicker results for larger projects. Many woodworkers prefer the router due to its versatility and precision.

Steps to Cut a Rabbet

Using a Table Saw:

  1. Install a combination blade capable of making rabbet cuts.
  2. Adjust the blade height and fence setting for the desired depth and width.
  3. Position the wood on the table saw.
  4. Make the first pass to cut the shoulder of the rabbet.
  5. Make additional passes to clear out the waste.

Using a Router:

  1. Select a rabbet bit or straight bit for the router.
  2. Adjust the depth and width settings of the router bit.
  3. Secure the wood and guide rails.
  4. Run the router along the edge of the wood, creating the rabbet.
  5. Check the fit and make necessary adjustments.

Applications of Dadoes and Rabbets

Dadoes are common in shelving units, bookcases, and cabinetry. They provide stability and support. Rabbets are often used in picture frames, drawer construction, and cabinet backs. Both joints enhance the strength and durability of the project.

Combining dadoes and rabbets can create complex joints. For instance, a dado and rabbet joint can be used for corner assemblies in boxes and cabinets. This combination offers superior strength and alignment.

Benefits of Using Dadoes and Rabbets

  • Increased joint strength
  • Improved alignment and stability
  • Enhanced aesthetic quality
  • Versatility in various woodworking projects

Strong joints lead to longer-lasting furniture. Properly aligned joints ensure that shelves and cabinets hold their shape. A well-cut dado or rabbet can enhance the overall appearance, showing craftsmanship. These joints are adaptable, fitting various project needs.

Common Mistakes to Avoid

  • Improper depth and width settings
  • Incorrect blade or bit selection
  • Failing to test fit the joint
  • Neglecting safety measures

Using incorrect settings can weaken the joint. Always measure and test fit to guarantee a snug and secure joint. Choosing the right tools enhances precision. Safety should never be overlooked; proper gear and cautious operation are essential.
